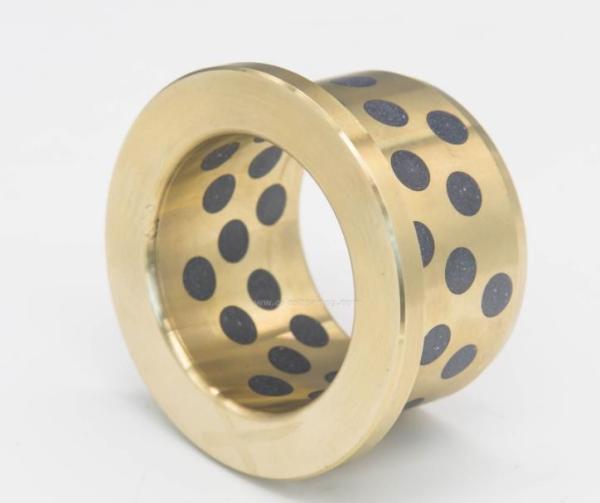

Aluminium Graphite Plugged Bronze Bushings Self Lubricating Oilless Bearing

Model Number : JDB-30

Place of Origin : China

Brand Name : PVB

Certification : ISO, IATF 16949

Price : Negotiation

MOQ : Negotiation

Delivery Time : Negotiation

Type : aluminum bronze bearing

Material Structure : Aluminum bronze + solid lurbicants

Highest sliding speed : 2m/s

Approved : ISO

Contact Now

JDB-30 Graphite Plugged Oiles Aluminium Bronze Bearing

JDB-30 Aluminium bronze bush is a type of oilless bearing.It's also called guide bush,cast bearing ,plain sliding bearing,solid bronze bearing,graphite inlaid bearing,solid sliding bearing,oiles 500 and self lubricating bearing.

Characteristics

Cost effective and higher crash strength comparing with JDB-20 type.

Its ends can even be welded with machine part and assemble together.

Availability

Cylindrical bushing, flanged bushing, thrust washer and slide plate are standard fabrication.

Special designs and material can be made according to your design.

Application

JDB-30 Aluminium bronze bush is widely used in metallurgy machine, construction machine, ail transportation machinery and other condition where oil is hard to add.

Technical Data

Max. dynamic load	70N/mm2
Max. Temperature	300
Base Hardness	HB60-90
Friction coefficient	<0.15
Highest sliding speed	2m/s
